GROHE high-precision turning and turn-milling
State-of-the-art CNC single- and multi-spindle machines and the excellence of GROHE's people: the guarantee of the best GROHE precision ever.
When things get complicated and demanding, we hit our stride. On our modern CNC-controlled machine park we produce precision parts of the highest quality. Thanks to innovative technology and an optimal workflow, we can deliver medium and large series as quickly as possible. By prior arrangement we are, of course, happy to produce small runs and sample parts too.
Workpiece facts
- Up to 42 tools, up to 3 of them in use at the same time!
- Precise form and position
- Burr-free machining (inside and out)
- Tightly toleranced fits
- Turned visible surfaces from Ra 0.40
- Fine-turned visible surfaces from Ra 0.25
- Process-reliable on sealing surfaces from Rz 2
- Complete machining from bar stock
- Interrupted cuts
- Thin-walled geometries
- Complex internal machining
- Turn-mill machining
- Smallest corner radii
- High-gloss turning
- Automated parts handling with Fanuc robot
- Absolutely damage-free parts handling and removal
- Programming and simulation via CAM system
Production facts
- All common brass alloys
- All common aluminium alloys
- All common stainless steel alloys
- All common copper alloys
- Turning in the range Ø 6–65 mm
- Quantities: from 500 pieces
- INDEX multi-spindle (cam & CNC)
- INDEX single-spindle (ABC / C100 / C200 / G200/2)
- Benzinger GO Future (gloss turning)
- Star Swiss-type lathes

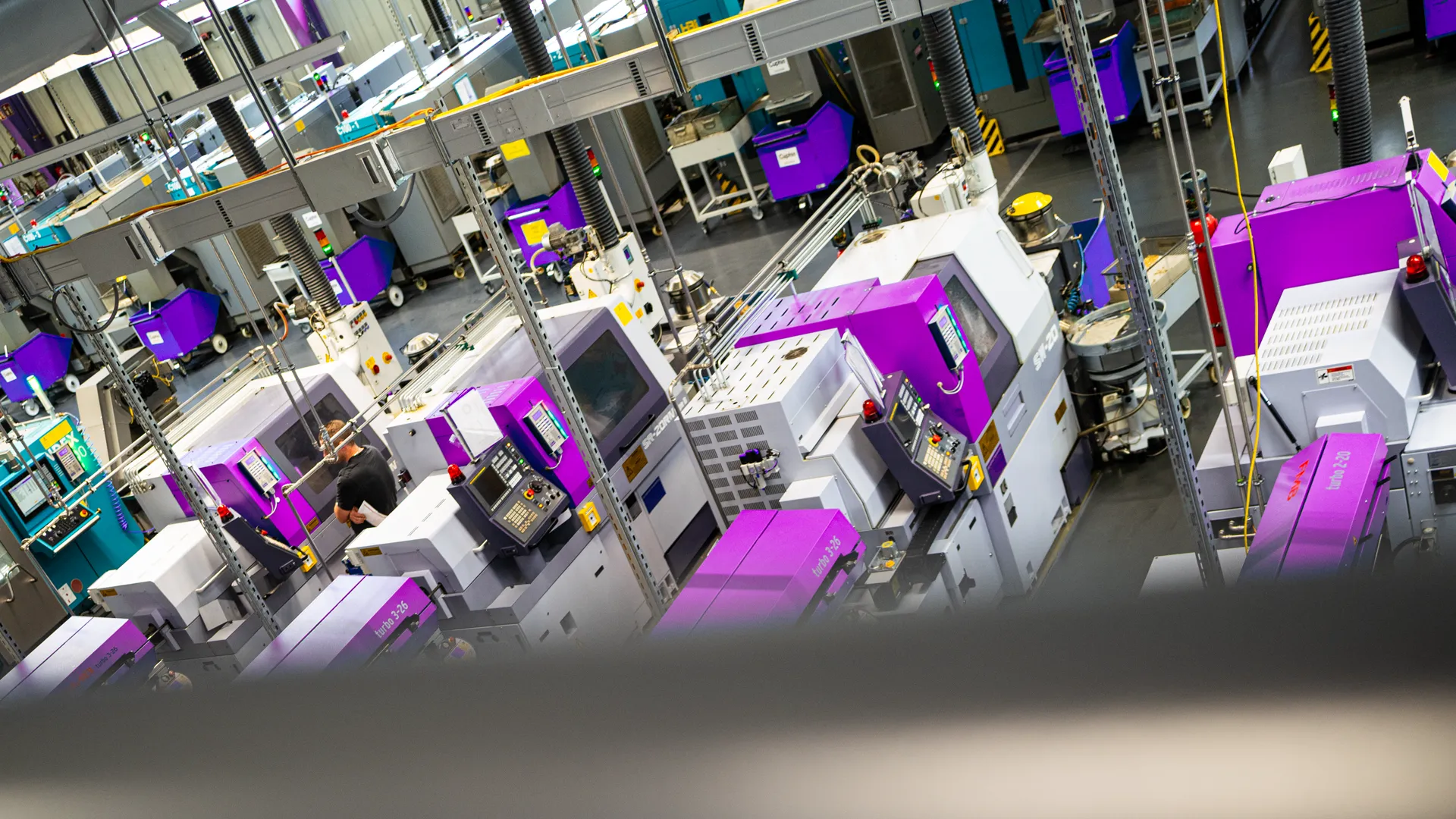

Our machine list. Turning and milling at the highest precision. The latest technology. Unmatched performance. For the best GROHE precision ever.
| Maschinentyp | Hersteller | Bezeichnung | Anzahl | Bearbeitungsbereich | Werkzeuge | |
|---|---|---|---|---|---|---|
| from | bis | |||||
| Mehrspindler kurvengesteuert | INDEX | MS25 | 4 | 12 | 27 | 12 |
| Mehrspindler kurvengesteuert (NC) | INDEX | MS25 E | 2 | 12 | 27 | 12 |
| Mehrspindler CNC | INDEX | MS22 | 1 | 6 | 22 | Max. 16 |
| Mehrspindler CNC | INDEX | Index MS32C | 1 | 12 | 32 | Max. 15 |
| Mehrspindler CNC | INDEX | Index MS40 | 1 | 13 | 40 | Max. 16 |
| Einspindler CNC | INDEX | Index ABC | 12 | 10 | 65 | 20 |
| Einspindler CNC | INDEX | Index C100 | 9 | 10 | 42 | 30 |
| Einspindler CNC | INDEX | Index C200 | 3 | 10 | 65 | 36 |
| Einspindler CNC | INDEX | Index G200/2 | 2 | 10 | 65 | 47 |
| Einspindler CNC | Star | SB20 | 1 | 2 | 23 | 18 |
| Einspindler CNC | Star | SR20 | 2 | 2 | 20 | 24 |
| Einspindler CNC | Star | SW20 | 2 | 2 | 20 | 20 |
| Glanzdrehen | Benzinger | GoFuture-B2 | 5 | 10 | 32 | 16 |
